IP67 MC4 Male/Female T Type 2 Branch Solar Panel Cable Photovoltaic Connectors

FOB Reference Price:Get Latest Price
  • 200 - 4999
    US $4.47
  • >=5000
    US $3.85
Supply Ability:
100000 Pair/Pairs per Day 700000/week
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Sunyo
Model Number:
SY-BM21-A/C
Type:
photovoltaic connector
Application:
For solar panel
Gender:
Male and female
China electrical connector:
Use for solar panel
Housing color:
Black
Contacts:
Copper,tin plated
Waterproof Gasket:
Silcicone Rubber
Rated current:
30A
Rate voltage:
DC 1000V(TUV)600V(UL)
Test voltage:
6kv(TUV50HZ,1min)
Degree of protection:
IP68
Temperature range:
-40 ~+90 Celsius degree
Flame retardant grade:
UL94-V0
Packaging & Delivery
Packaging Details
1.20pairs in one poly bag
2.600pairs in one carton
3.Carton size:48*35.2*31cm
4.according to the customers requirement
Delivery Time
within 24hours depend on quantities

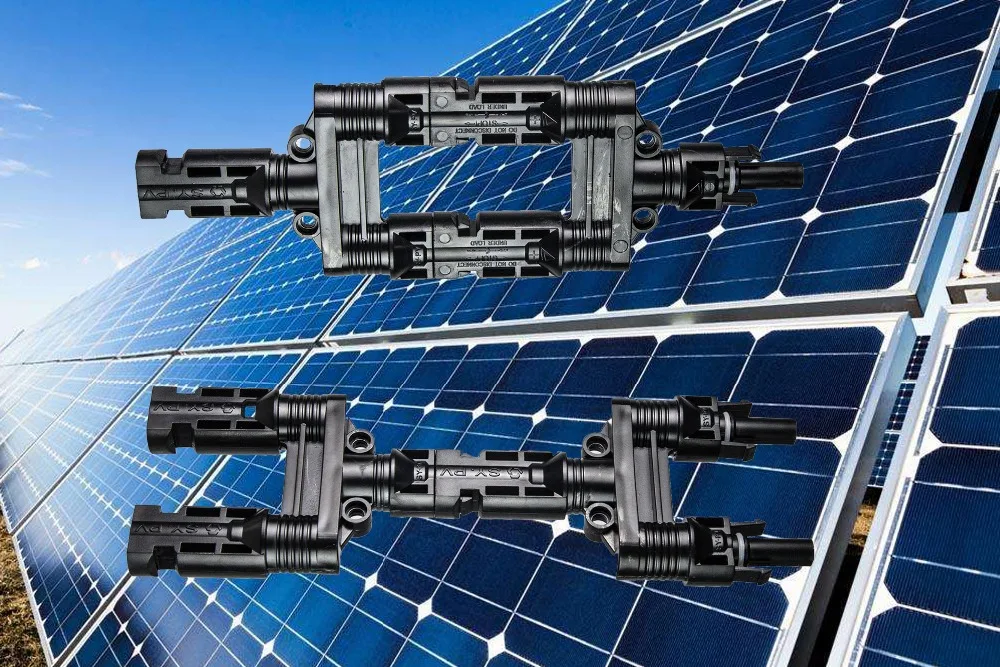

Solar MC4 T branch connector SY-BM21-A/C connector for solar panel

1.PPO material,guarantee 25year

2.TUV&UL standard

3.The pin is Copper,tin plate

------------------------------------------------------------------------

Who we are



We are a factory since 4year manufacturer solar component for solar panel,located in Chang’an town, Dongguan city, China.



-------------------------------------------------------------------------------------------------

 The advantage of our MC4 T-branch connector

1.This MC4 solar connector has an auto-locking  structure to connect reliably

2.We use only eligible PPO material from resin supplier, material production included marvelous performance in the high/ low temperature,flame retardant, anti-ultraviolet rays,used to harsh outdoor environment.

3.The proven assembly process is simple, fast, safe and easy.

4.Our connectors are in the lowest Contact resistance:0.4 mΩ







------------------------------------------------------------------------------------------------

Quality and Safety

  • 25-year power output transferable warranty
  • High quality standards with optical, mechanical and electrical component testing during and post-production
  • ISO 9001:2000 (Quality Management System) certified factories manufacturing world class products
  • IEC61215, IEC61730, conformity to CE
  • TUV certificate
