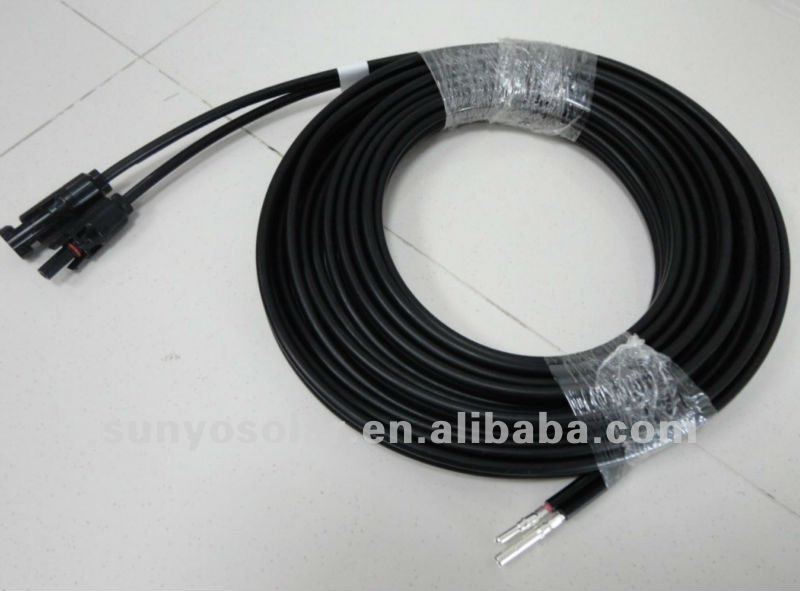

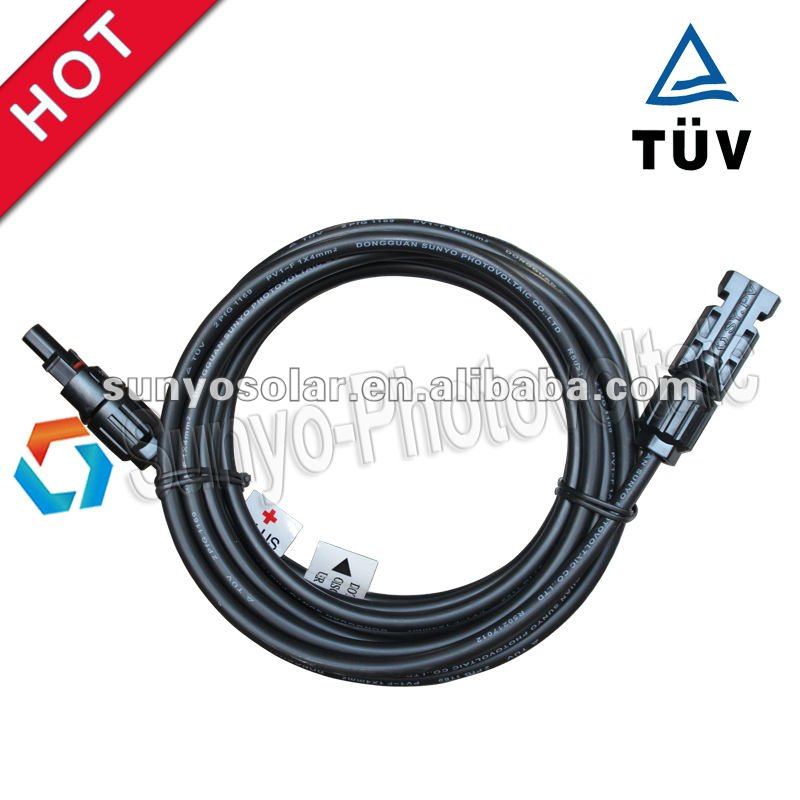

TUV certificate Single Core Cable2.5mm 4.0mm 6mm 10mm solar pv cable with MC4 connector

FOB Reference Price:Get Latest Price
US $1.84-1.95 / Meters | 200 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SUNYO
Model Number:
Twin Solar Cable SY-X40
Insulation Material:
Eletron beam cross-linked
Type:
Nominal voltage
Application:
wire solar plants
Conductor Material:
Soft annealed stranded tin-plated copper
Jacket:
Electron beam cross-linked material
Twin Solar Cable:
-40C to +90 C
Life span:
25 years typ
Rated voltage:
DC 1000V(TUV)600V(UL)
Standard:
UV and ozone resistant
cold bend:
UL854
Sunlight resistance:
UL2556
Stability factor:
UL854
Relative permittivity:
UL854
Fire performance:
UL 1581 VW-1
Supply Ability
Supply Ability:
100000 Meter/Meters per Day
Packaging & Delivery
Packaging Details
250M/roll or to be advised.
Port
ShenZhen
Lead Time :
24 hours

Twin Solar Cable

 507774747_09104DSC02265IMG_5269_4.0 mm2 Flat solar wire-PACKAGE_20171115230504_20171115230512











Description


• Application: Solar Panel
• Conductor: Tinned Copper Conductor to AS/NZS 1125
• Insulation: PVC V90HT(105°) to AS/NZS 3808:2000
• Sheath: NBR (Nitrile modified PVC) V90HT(105°) to AS/NZS 3808:2000
• Colours: Red & Blue cores, Double sheathed Black sheath with red stripe
• Voltage Rating: 450/750V AC or 1200V DC

Features


• RoHS Compliant
• High Thermolysis Efficiency
• High quality with anit-dust, anit-uv and anti-aging
• High resistance against oil, steam & bacteria

Specifications


• Number of Strands x Wire Ø 56/0.30
• Nominal Area mm Sq 4
• Average SheathThickness mm 1.1
• Average Insulation Thickness mm 0.9
• Nominal O.D. mm 6.6
• Mass Kg/100mt 14.0 Kg
• RoHS Compliant
• High Thermolysis Efficiency
• High quality with anit-dust, anit-uv and anti-aging
• High resistance against oil, steam & bacteria

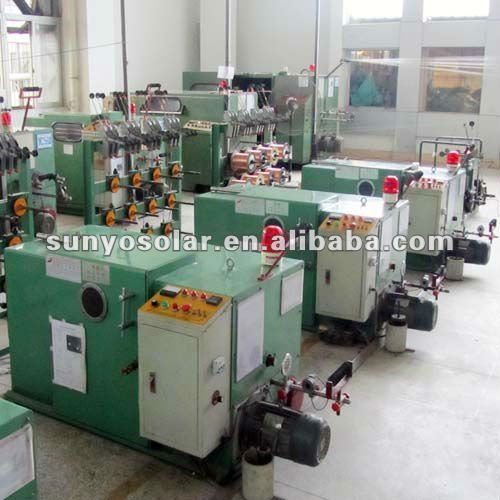

About our factory

52





Attatching:







1.Accepts OEM. We also can design the cable according to your instructions, the color, specifications, length of our cables and connectors can be customized by the customers;

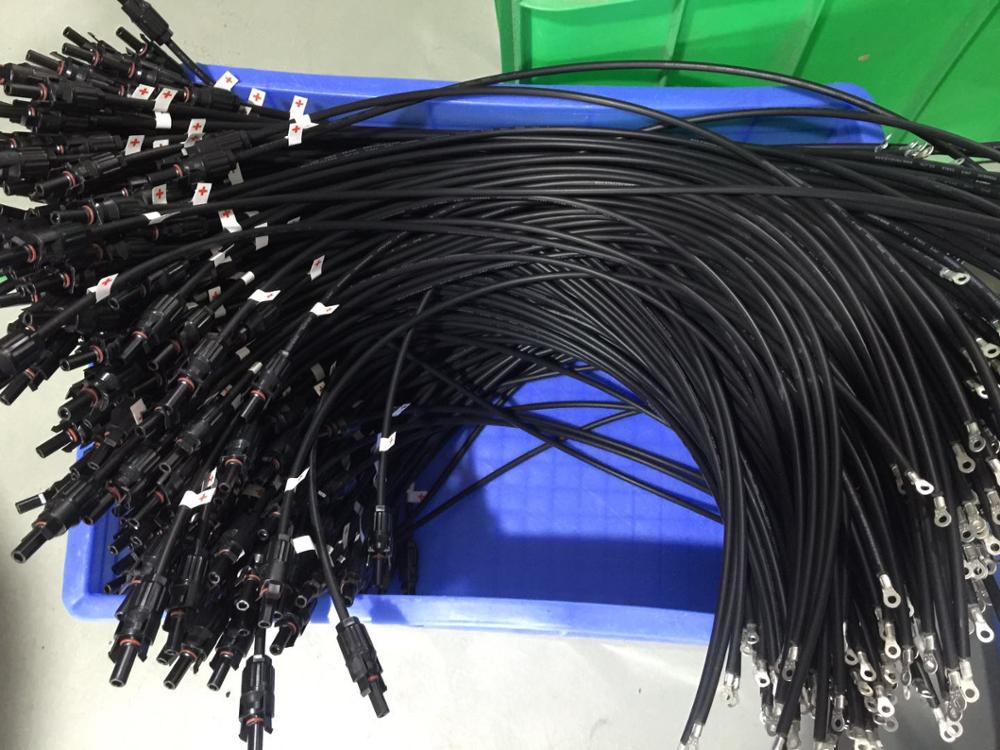

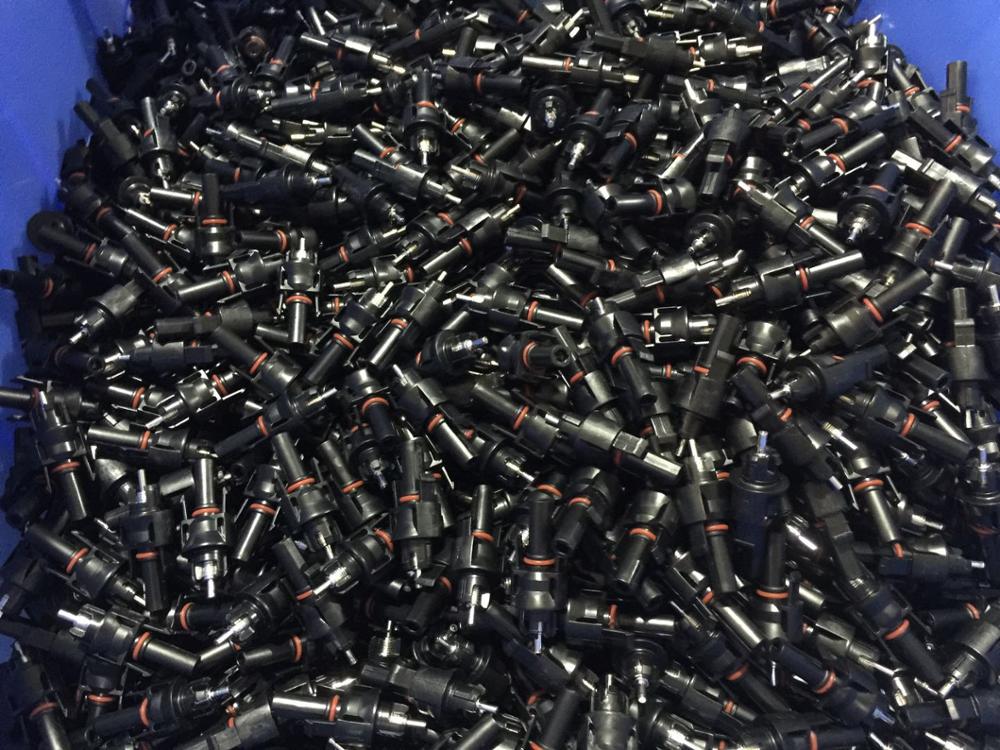

 2.We can provide the cables as well as connectors  linked with the cable;



3.We adpot select raw-materials, our products are in high quality, competitive prices, prompt delivery;











Contacting us



1. We depend on our customers' satisfaction to succeed, therefore your feedback is extremely important to us .



2. We love to hear from you. Drop us an email if you like our products,We would like very much to work with you to solve any issues you may have.
